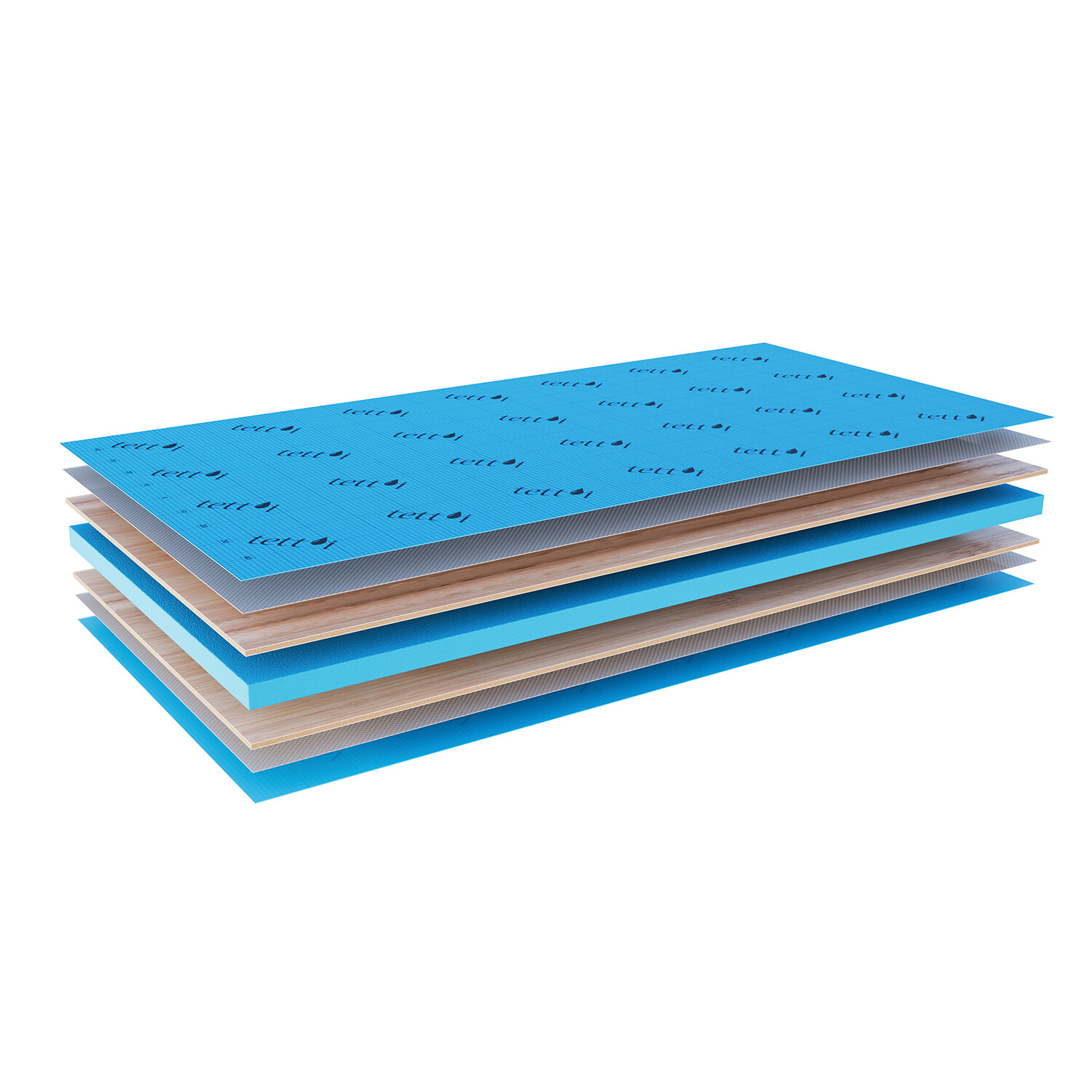

Total Board 3 lN 1

ARTICLE

TTB6-2496 600x2400x6mm (24"x96"x1/4")

TTB10-2496 600x2400x10mm (24"x96"x3/8")

TTB12-2496 600x2400x12,5mm (24"x96"x1/2")

TTB6-2448 600x1200x6mm (24"x48"x1/4")

TTB10-2448 600x1200x10mm (24"x48"x3/8")

TTB12-2448 600x1200x12,5mm (24"x48"x1/2")

TTB6-3660 910x1524x6mm (36"x60"x1/4")

TTB12-3660 910x1524x12.5mm (36"x60"x1/2")



Customerized sizes are available

1.Stable construction

2.Membrane tight

3.Good screw fixation for mounting subsequent installations.

such as wall cabinets, shower walls, and bathroom accessories.  Tetti Systems believe this plate revolutionizes the membrane plate market, streamlining the time it takes to complete your bathroom project.

The plate is 15mm thick, lightweight at 5.5 kg per square meter, facilitating quicker and safer assembly with fewer joints.

The walls are ready when the joints and pipe penetrations are

sealed with sealing tapes and sleeves, thereby making the bathroom completely membrane-sealed and ready for further

surface treatment with, for example, ceramic tiles. The plate is intended for mounting on the wall with corresponding membrane foil or floor lubrication membrane system. Applications include floors and walls in bathrooms and laundry rooms in homes, hotels, or public buildings. The membrane should always be overlaid with ceramic tiles or other types of floor or wall covering.
